WTRBOX: Slant Plate Clarifiers
With hundreds of installations throughout the world, over 40 years we’ve honed our Laminar Flow Clarifier design to maximize durability and efficiency with superior liquids/solids separation in industrial settings.
-
Get Started
Click “Get Started” to contact a sales representative to find out more about our Slant Plate Clarifiers.
-
Equipment Rental
Many of our clients find that our rental equipment is a quick and cost-effective solution to a large array of situations and needs.
-
Spare Parts
WTRBOX offers a large array of spare parts to keep your systems running at an optimal level.
The 8-step process of a slant plate clarifier
1. Influent water enters the clarifier through the feed chamber.
2. The water enters the inclined plates through the feed slots.
3. The liquid is forced up through the plates in a counter-current flow pattern.
4. The clarified flow rises between the plates while gravity forces the solids to fall out of the flow.
5. The solids settle in the cone section of the clarifier for removal.
6. Clarified liquid flows up over the weirs and into a trough.
7. The clarified effluent is discharged from a connection at the bottom of the trough.
8. The sludge is drawn off the bottom of the sludge chamber and flows to the sludge thickener for further dewatering.
Industries served
WTRBOX Slant Plate Clarifiers can be delivered as fully integrated, skid-mounted systems with proprietary remote monitoring and controls capabilities. These systems are shipped ready for installation and start-up, requiring minimal labor and maintenance. For businesses seeking branded solutions, we offer the option to white-label these systems, seamlessly integrating them into your company’s product lineup.
WTRBOX Slant Plate Clarifier Options
Purchase or rent a fully integrated system tailored to your specifications, with the option to have it white-labeled to align with your company’s brand. Explore the options below to find the perfect solution for your needs.
Remote monitoring
WiFi hotspot enabled
Connect to your existing internet
Made in the USA and UL approved

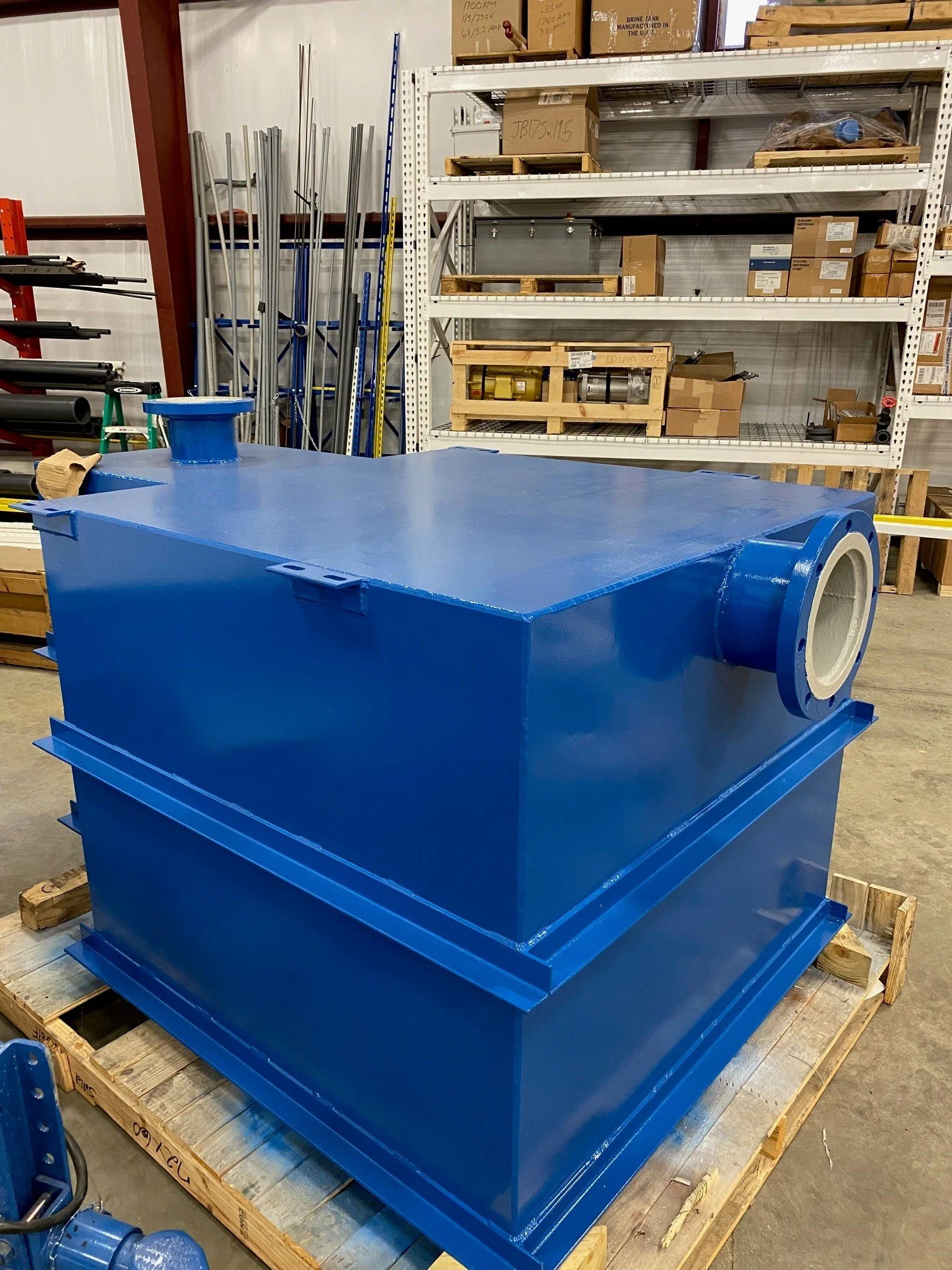

Flash mix tank, sludge transfer pump, and sludge thickener tank options available upon request
In-house financing and leasing
Flow Diagram Video
JMS-75
Starting at: $19,000
JMS-125
Starting at: $32,000
JMS-250
Starting at: $40,000
JMS-350
starting at: $45,000
JMS-500
Starting at: $58,000
JMS-600
Starting at: $65,000
JMS-750
Starting at: $70,000
